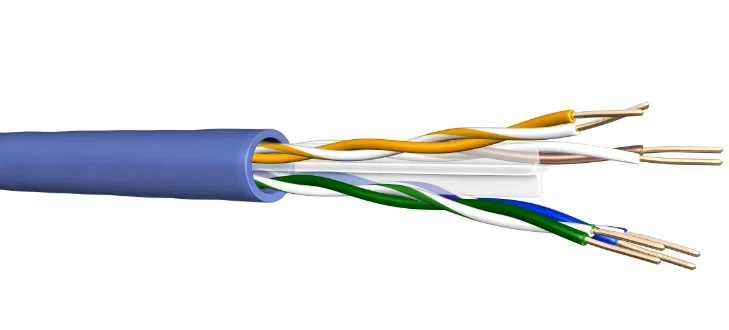

Draka UC400 Cat.6 U/UTP 23AWG
Draka UC400
Stanje Zaliha: Rasprodato
Prijavite se da bi ste videli cijenu
Ovaj artikal trenutno nije na zalihama i ne može se kupiti.
Opis
Mrežni kabal Kategorije 6
Tehnički podaci
| Construction | |
|---|---|
| Conductor | Solid copper wire Nom. ≥ Ø 0.546 (23AWG) |
| Insulation | PE |
| Sheath | PVC or LSZH |
| Sheath colour | GREY/BLUE/ORANGE/GREEN |
| Outer Diameter | Nom. Ø 6.1 mm |
| Weight | Nom. 39.0 kg/km |
| Minimum bending radius with load | ≥ 8 X OD |
| Minimum bending radius without load | ≥ 4 X OD |
| Temperature range during operation | -20°C up to +60°C |
| Temperature range during installation | 0°C up to +60°C |
| Electrical properties at 20°C | |
| Characteristic Impedance (1-100 MHz) | 100 ± 15 Ω |
| DC Loop Resistance | ≤ 187.6 Ω/km |
| DC Resistance Unbalance | ≤ 5% |
| Mutual Capacitance (@800 Hz) | ≤ 5.6 nF/100m |
| Capacitance Unbalance (pair to ground) | ≤ 330 pF/100m |
| Velocity of Propagation | Nom. 65% |
| Propagation Delay (@250 MHz) | ≤ 536.0 ns/100m |
| Delay Skew | ≤ 45.0 ns/100m |
| Max Attenuation @250 MHz | ≤ 32.8 dB/100m |
| Min. NEXT @250 MHz | ≥ 38.3 dB/100m |
| Min. PS-NEXT @250 MHz | ≥ 36.3 dB/100m |
| Min. ELFEXT @250 MHz | ≥ 19.8 dB/100m |
| Min. PS-ELFEXT @250 MHz | ≥ 16.8 dB/100m |
| Min. Return Loss @250 MHz | ≥ 17.3 dB/100m |
